NT Burner

IC-8445

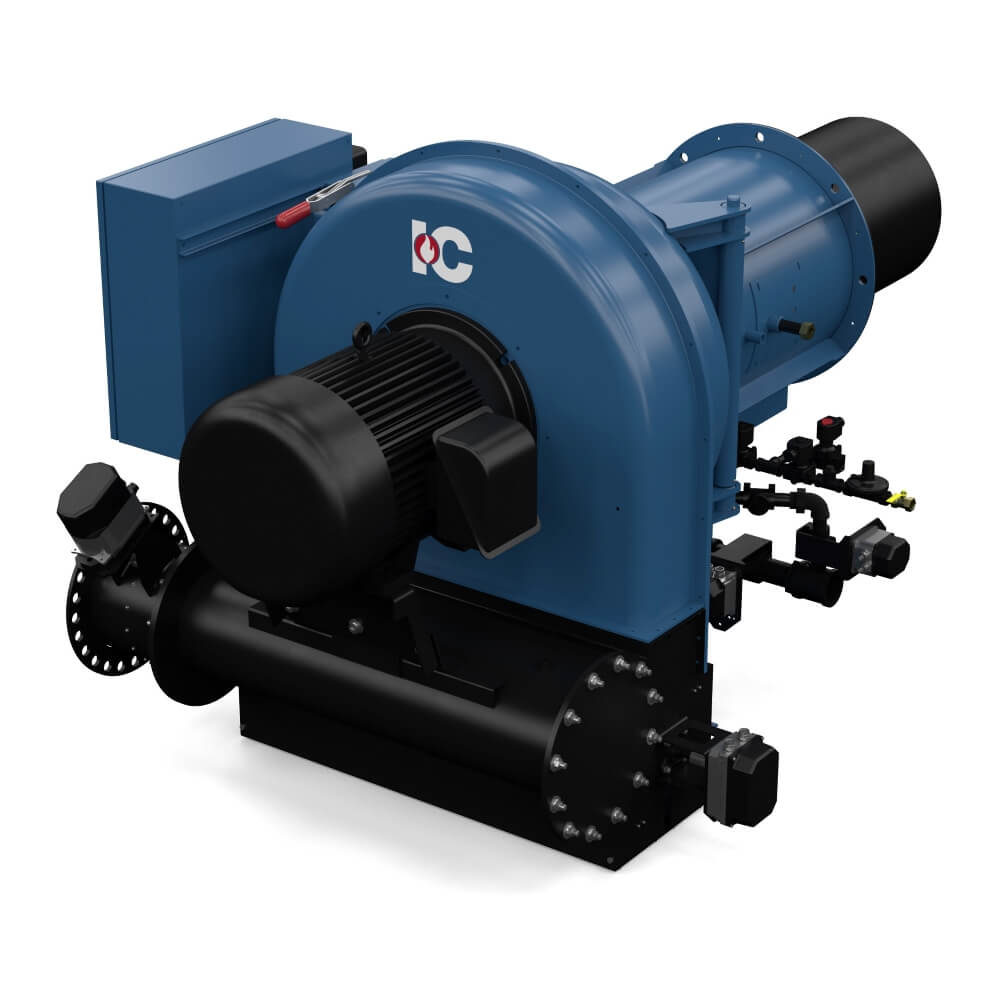

NTD Series Burner
  • Boiler Horsepower: 90 - 2,200
  • Emissions (ppm NOx): <9
  • Fuel: Gas, Oil, Comb.
  • Furnace Pressure: 2.3 - 5.9
  • Input Capacity (MBH): 1,500 - 92,400
  • Min Gas Pressure: 4
  • Mode of Operation: Full Modulation
  • Oil Input (US GPH): 90 - 660
  • Parallel Positioning: Included
  • 1.5 to 92.4 MMBTU/HR input range
  • 36 to 2,200 boiler HP
  • Gas, #2 oil and combination
  • Available to <9 ppm NOx



The NT series is an Ultra-Low NOx performing burner series capable of sub 9ppm NOx without complicated surface combustion mesh. Available as gas only or dual fuel.

Add to List
  • Product Overview
  • Related Resources
  • Applications
  • Top- or rear-mount panel options
  • Backward-curved impeller provides adequate combustion air for various furnace pressures
  • Rotary air-damper system with silencer
  • Hinged for easy access to internal components



The NT Series was designed and developed with a Flue Gas Recirculation system which has been proven to be the benchmark in the industry. Emissions reduction, fuel savings, performance, and reliability make the NT Series an excellent choice. The NT Series burner offers natural gas, propane air mix, air atomized #2 oil, and combination gas and oil fuel options from 37.8 to 92.4 MMBTU per hour, with full modulation operation and parallel positioning for greater efficiency and cost savings. The NT is an ultra-low-NOx burner capable of less than 9 ppm NOx emissions.

  • Process Steam
  • Industrial Process
  • Building Heat
  • Hospital and Healthcare
