V Series
- Boiler Horsepower: 31 - 400
- Emissions (ppm NOx): Uncontrolled, <30
- Fuel: Gas, Oil, Comb.
- Furnace Pressure: 0.4 - 4.3
- Input Capacity (MBH): 1,300 - 16,800
- Min Gas Pressure: 8.1
- Mode of Operation: Full Modulation
- Oil Input (US GPH): 9.3 - 120
- Turndown: Up to 8:1
- 1.3 to 16.8 MMBTU/hr
- 31 to 400 HP
- Gas, oil, and combination
- Available to <30 ppm NOx

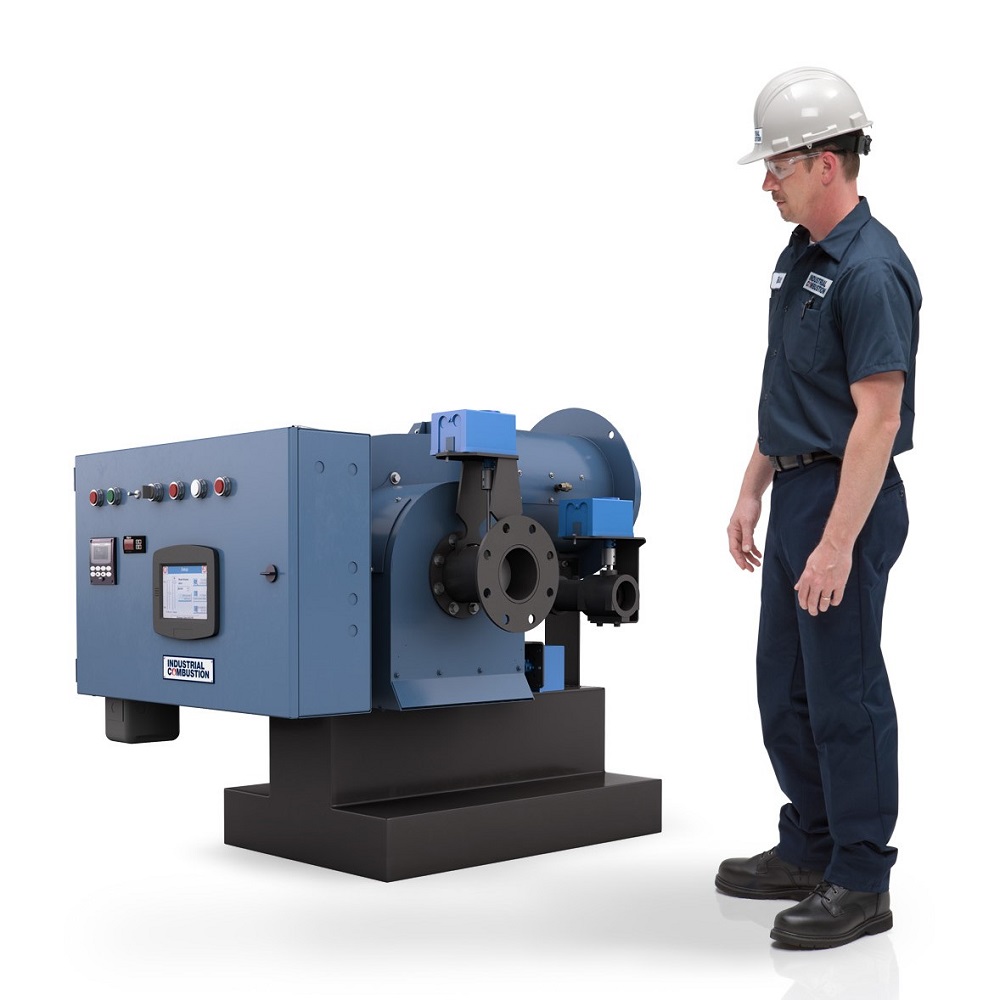

The V series burners boast an aerodynamic air-damper design which permits accurate air-to-fuel settings for maximum combustion efficiency.
- Burner Application Guide(Literature)
- LNVG Specifications(Technical Data)
- LNVLG Specifications(Technical Data)
- Quick Product Reference Guide(Literature)
- Software to View Our 3D Models- Click Here(Drawings)
- V Series Brochure(Literature)
- V Series Operation and Maintenance Manual(Technical Data)
- V Series Operation and Maintenance Manual - 2023(Technical Data)
- V Series Technical Data Sheet(Technical Data)
- V Series V-105 STD Model 3D(Drawings)
- V Series V-126 to 168 STD Model 3D(Drawings)
- V Series V-25 to 34 STD Model 3D(Drawings)
- V Series V-42 to 54 STD Model 3D(Drawings)
- V Series V-63 to 84 STD Model 3D(Drawings)
- VG Specifications(Technical Data)
- VLG Specifications(Technical Data)
- Product Overview
- Related Resources
- Applications
- Unique air-damper design features a dual-blade configuration offering precise control of combustion air flow throughout the entire firing range
- Cam trim option with 14-point adjustment range for consistent air/fuel ratios
- UL/cUL listed
Suitable for firetube, watertube, firebox and cast iron boilers, the standard V series offers natural gas, propane gas, pressure atomized #2 oil and combination gas/oil fuel options from 1.3 to 16.8 MMBTU. The low NOx V series offers natural gas, propane gas, pressure atomized #2 oil, and combination gas/oil fuel options from 1.3 to 14.7 MMBTU. Using advanced technology, the V series offers high turndown on natural gas and low emission capability. The forced-draft design provides clean and efficient combustion. Design features also include a top- or rear-mount panel option, Induced FGR (Flue Gas Recirculation), an FGR modulating valve, and No. 2 oil capability for backup fuel.
